CGS sensor - Standard

(0,5 - 5 l/min and bypass)

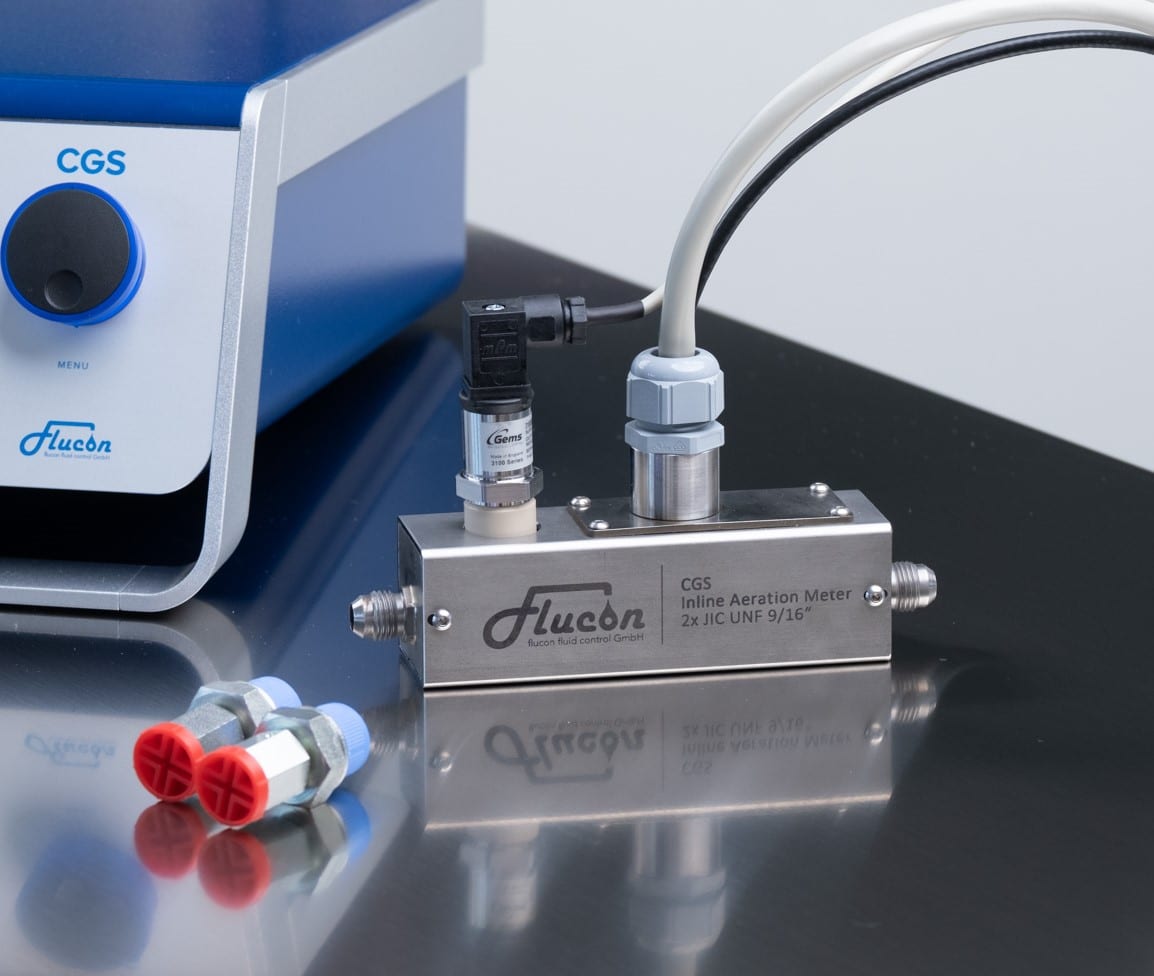

Standard sensor of the flucon CGS



Application of the standard sensor

The standard CGS sensor is suitable for flow rates up to max. 5 l/min for a mainstream installation. For higher flow rates > 5 l/min we recommend installation in a bypass. For this, we optionally offer an installation kit incl. flow limiter.

The bypass installation has already proven itself many times, and the majority of our customers rely on the compact sensor and this installation type for the continuous determination of the gas concentration.

Your application features flow rates larger than 5 l/min, and you prefer main stream measurement?

>> See the large CGS sensor



Optimal integration

The standard CGS sensor has JIC/UNF 9/16" male threaded oil connections on both ends.
In addition we offer adapters for all common and suitable thread sizes, e.g. AG 3/8 ".
Thus, a flexible and simple integration into your fluid circuit is guaranteed.

For the standard measuring section, the following pressure drop curve results:



Pressure drop for CGS Standard sensor



Technical specifications

Measuring mediaelectrically non-conductive fluids
Flow rate0,5 - 5 l/min
Temperature measurementPT 100, +/- 0,1°C
Temperature range-30°C to 150°C
Pressure measurementpressure sensor 0-10 bar
Maximum operating pressuremax. 10 bar
Dimensions (WxHxL)40 x 110 x 165 mm (incl. pressure sensor & CGS sensor cable gland) - customized sensors available upon request
Sensor materialStainless steel (1.4571)
Sensor connectionsJIC/UNF 9/16″-18Gg (Dash-6) male connections on both sensor ends - screw-on adapters to different standard threads (e.g. to 3/8" male) available as accessory
Sensor cable length5 m - custom lengths available upon request
